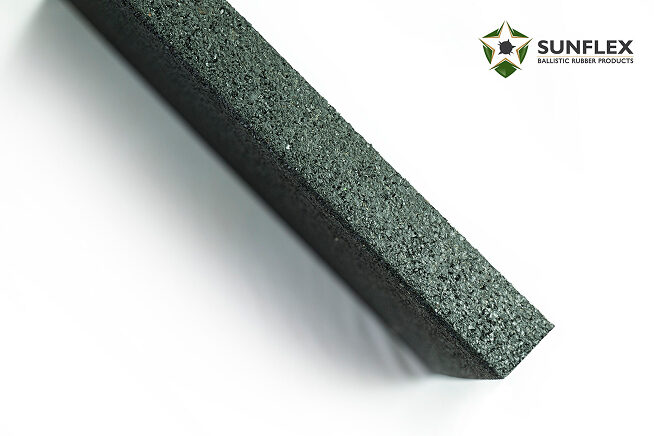

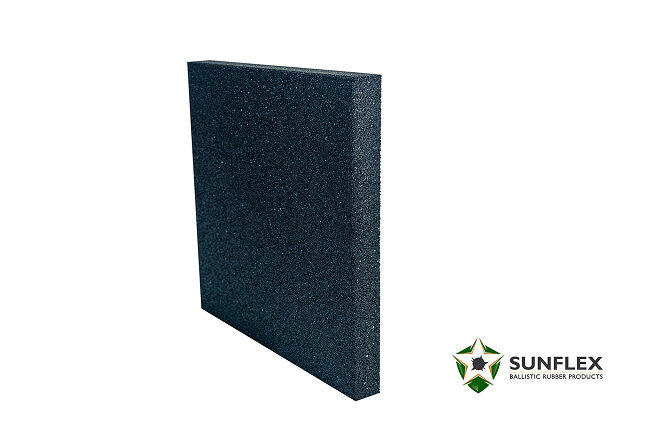

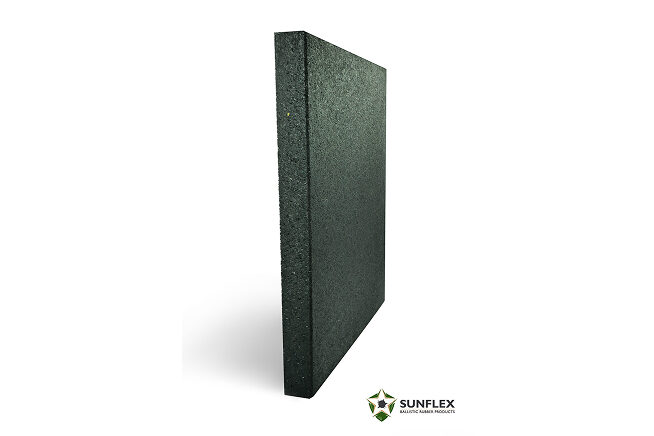

Ballistic rubber tiles are produced from recycled rubber with a special binding composition.
Ballistic rubber panels are used to stop bullets, which helps to prevent ricochets, splatter, and sound abatement and reduce airborne lead containment of standard pistol and rifle rounds up to .308/7.62mm.
Sunflex Ballistic rubber panels offer capabilities and performance with superior quality and durability. The ballistic rubber tiles are high-density, strong, and elastic, providing a safe live-fire environment.
Ballistic rubber panels are designed for use in live shooting ranges. These extra-thick and extremely durable rubber tiles assist in ricochet reduction and help reduce noise levels at firing ranges.
Panels can be applied directly to ballistic steel plate, concrete, or plywood using an industrial adhesive.
Ballistic rubber tiles are commonly used for tactical shoot houses, mobile modular live ranges, ceiling baffles, shooting range walls, bullet containment systems, and baffle ranges. This provides solutions for military, law enforcement, commercial and residential live ranges.
| Dimensions | Thickness | Weight per panel | Colours Available |
|---|---|---|---|
500mm x 500mm |
50mm |
12kg |
Basic Black |
500mm x 500mm |
43mm |
11kg |
Basic Black |
500mm x 500mm |
30mm |
6.5kg |
Basic Black |
500mm x 500mm |
100mm |
24kg |
Basic Black |
610mm x 610mm |
50mm |
18kg |
Basic Black |
610mm x 610mm |
43mm |
16kg |
Basic Black |
610mm x 610mm |
30mm |
9.5kg |
Basic Black |
610mm x 610mm |
100mm |
36kg |
Basic Black |
Note : customised sizes and colours are also available upon request.
The Sunflex ballistic rubber panels have been certified to the Level 3 NIJ 0108.01 standard.
Design our proprietary premium ballistic rubber products.
Hot mould technology is used to manufacture all of our Sunflex ballistic rubber products, which include panels and blocks. This results in products that are exceptionally durable and perform well.
It is distinguished by its exceptional stability and elasticity as a result of its polyurethane binding procedure and revolutionary polymer technology.
We use specialised composition to produce ballistic rubber tiles with fire retardant and UV protection.
We stand out on a global scale by using heated mould technology and numerous of additional innovations, such as recycled rubber binding composition and proprietor manufacturing.
Each panel is expected to withstand approximately 2000 rounds prior to necessitating replacement, subject to variations in bullet type, shot concentration,
wear distribution, and the substrate used for backing.
Ballistic rubber panels by itself does not effectively halt or neutralise the projectile and must be employed in conjunction with suitable support.
(AR500 steel plate, concrete)
We have produced and supply our ballistic rubber panels to 100+ live ranges for industry including military, law enforcement, commercial, residential, special and independent forces.
Durability and performance are far superior compared to other recycled rubber compositions. Withstand extreme conditions without degrading material.
Our panels undergo regular quality testing for the Level 3 NIJ 0108.01 standard from government-authorised ballistics research centres and global independent ammunition testing laboratories.
Top industry leaders and organisations worldwide have chosen Sunflex ballistic rubber panels for the design and construction of live shooting ranges, ammunition testing facilities, and ballistic research centres.
